SPECIFICATIONS

technology: vacuum brazed

machine: angle grinder

is_customized: Yes

Working depth: about 35mm

Use: Metal Drilling

Usage: Dry or wet

Type: Core Drill Bit

Shank: M14 Thread

Origin: Mainland China

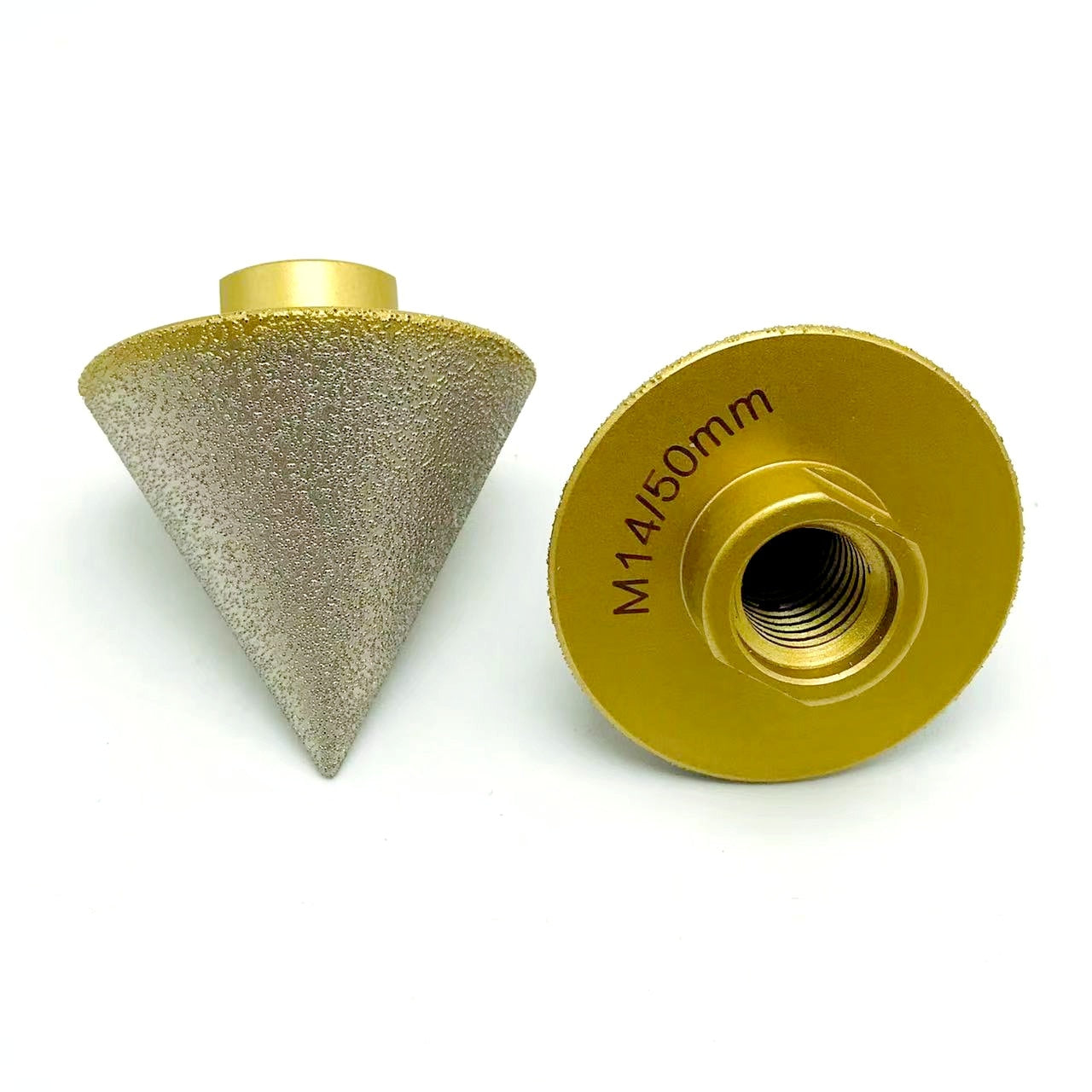

Model Number: Diamond Chamfering Heads

Material: Diamond

Height: about 43mm

Diameter: 35mm 50mm

DIY Supplies: Tiling

Attributes4: Attributes4

Attributes3: Brazing Finger Bits

Attributes2: M14 thread

Attributes1: Diamond Chamfering Heads

Application: granite, marble, porcelain ceramic tile

Connection method: M14 thread

Specifications: diameter 35mm, 50mm

feature:

1. Widely used in milling to enlarge the existing hole of polishing groove.

2. Vacuum brazing technology and high diamond density make it work faster and have a longer life.

3. Strict production process to ensure the perfect combination of the cutter head and the base.

4. Beveled design simplifies the work of chamfering and eliminates rough holes on tiles, porcelain, marble, granite, ceramics, etc.

5. Very useful for improving the edge finish of exposed holes.

6. Less waste, clean and smooth.

7. Wet and dry use.

8. Vacuum brazing process, high diamond concentration provides faster cutting speed, while high quality diamond provides longer service life

9. Great for reducing the risk of cracking in standard and large format tiles subjected to tension (eg tightened pipes, LED lights, etc.).

Notes:

This is not a coring bit for drilling. It won't punch holes, but will slant the holes and reinforce the edges if the edges chip or need cleaning.

When in use, tilt and reduce the contact surface. Do not press hard directly. Shake gently and slowly along the force, the amplitude should not be too large.

Notes!

1. This is not a coring bit and cannot be used for drilling.

2. Do not press hard, shake gently to avoid bouncing and hurting people.

Please allow 1-3mm error for manual measurement

The item colors shown in the photo may appear slightly different on your computer monitor because the monitor is not calibrated the
