Product Overview
BL-WFS210 Automatic Edge Banding Machine
BL-WFS210 automatic edge banding machine, adopts one-piece all-aluminum pressure beam, rotating hand-crank design, easy to adjust, precise scales on both sides, inner inclined pressure wheel, stable grasping plate, no deviation, frame Type structure, solid track, good stability of the sealing plate, the motor is wrapped with pure aluminum alloy grinding tool, the lifting adopts precision guide rail slider, the upper and lower parallel, the four-edged 1.5 trimming knife, the replica trimming, the board cleaning, the second time After finishing and sealing, it is directly arc edge, large-enclosed dust collector, edge-sealing frame is sprayed and welded, no rust on both sides with 2.0 thickness plus spraying, this edge-sealing machine can seal large boards and small boards. , The continuous board feeding is stable, allowing you to earn money for the whole house with the home improvement machine...
Function list
product description
Automatic plank transport Automatically cut edgebands Automatic monitoring of board thickness Automatic trimming Automatic chamfering Automatic cleaning of wooden boards Automatic secondary finishing Automatic plank polishing
Right façade
Left facade
Neutral surface
Features

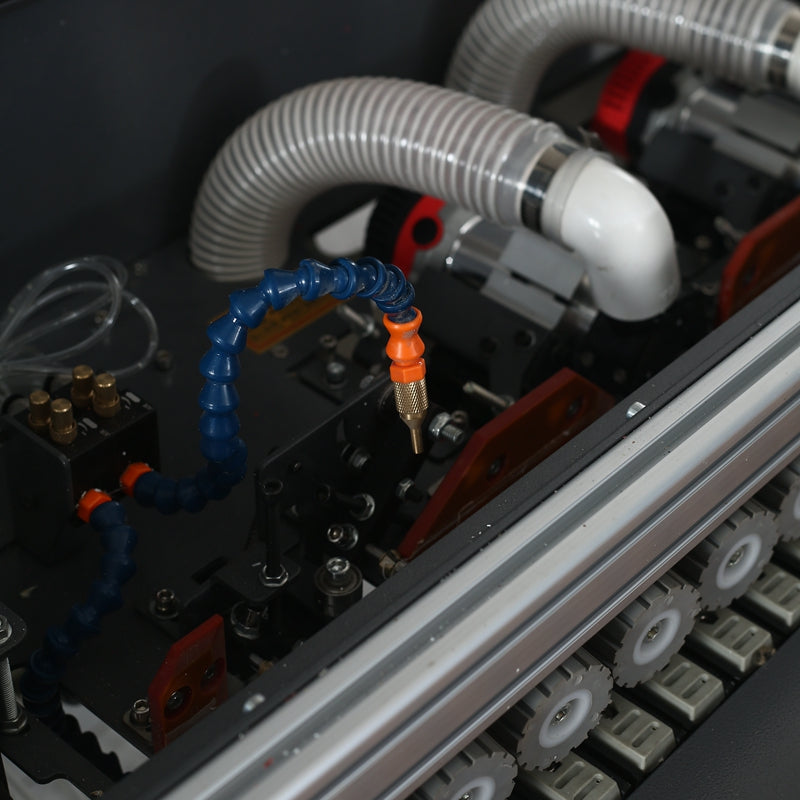

The picture above is a close-up shot of the automatic cleaning agent spray device and the trimming and vacuuming integrated device
Features

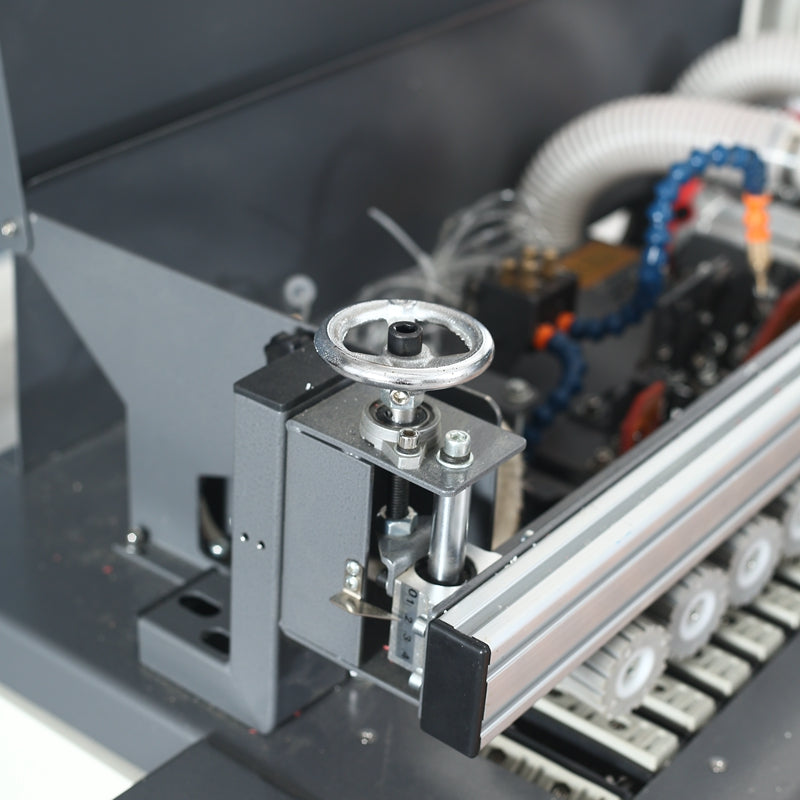

The picture above is the effect of the scaled, adjustable board height platen device
Product Paramenters
|
No
|
Item
|
Data
|
|
1
|
Voltage
|
110V~220V
|
|
2
|
net weight
|
167KG
|
|
3
|
Gross weight
|
174KG
|
|
4
|
Package dimensions
|
1580*610*680mm
|
|
5
|
Machine size
|
2100*570*1120mm
|
|
6
|
The total power of the edge banding system
|
825w
|
|
7
|
Polishing motor power
|
180w
|
|
8
|
Vacuum motor power
|
1.2kw
|
|
9
|
Trimming motor power
|
800w*2
|
Product packaging
